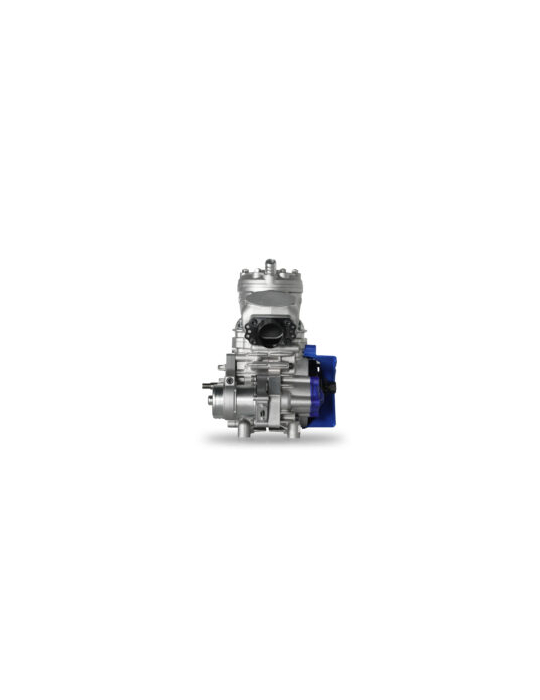

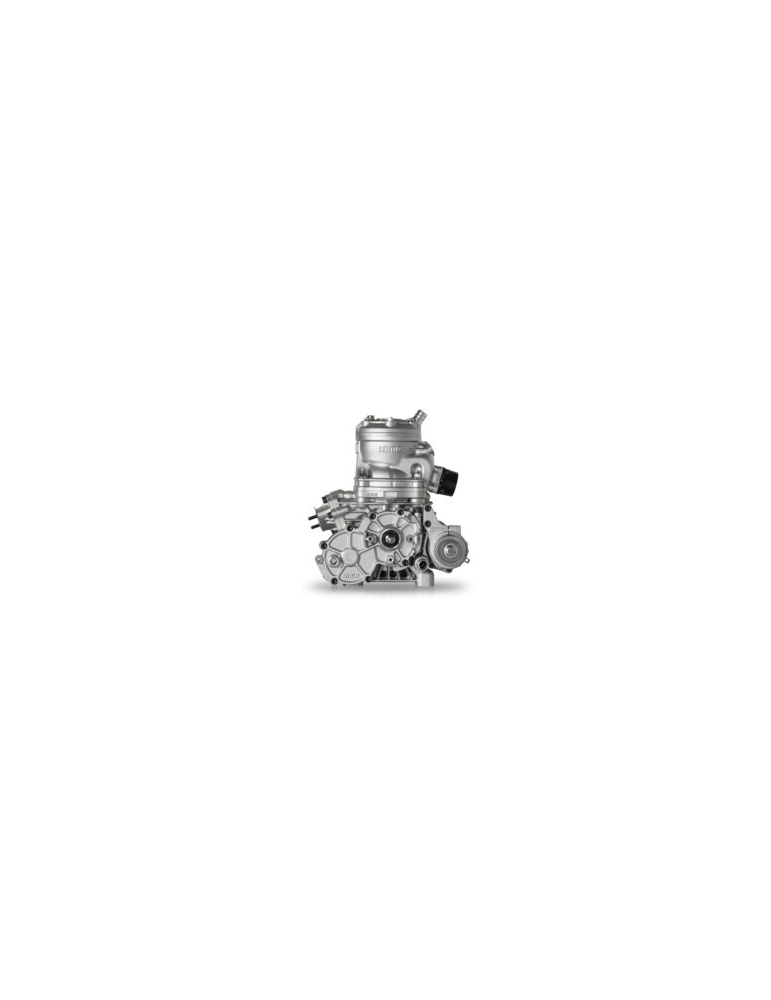

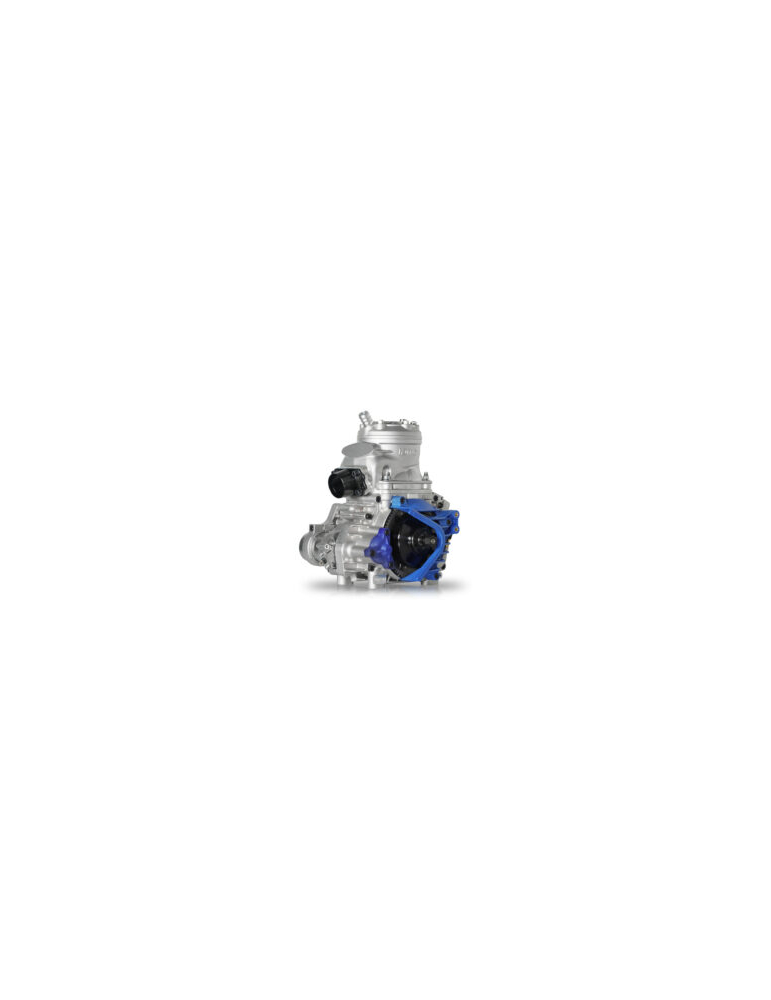

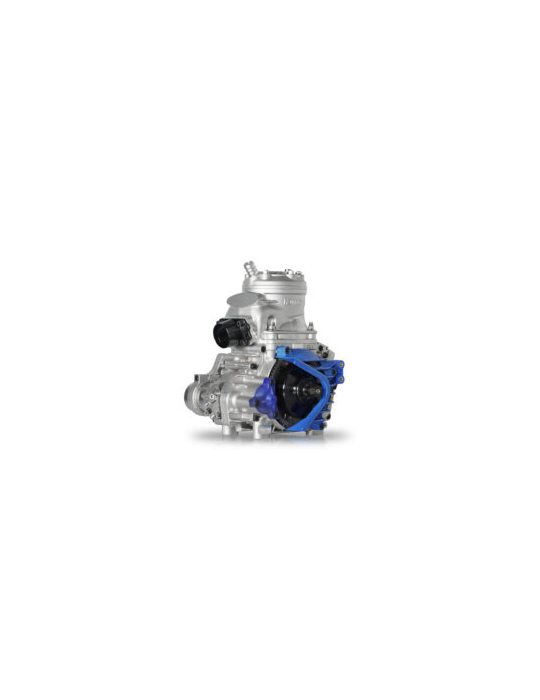

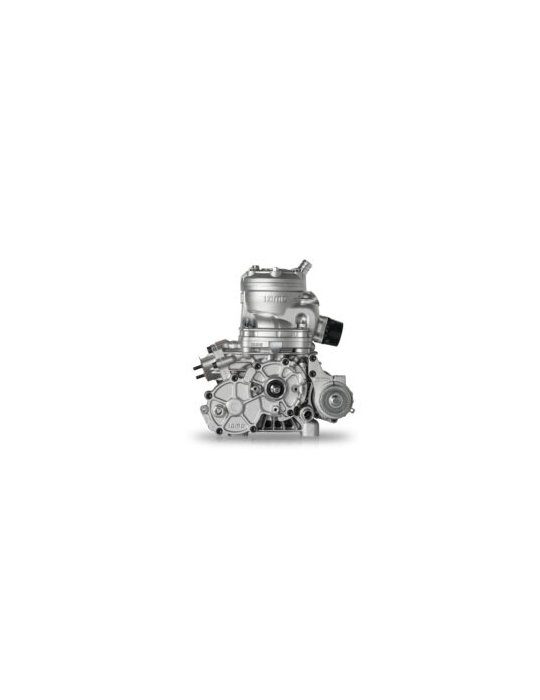

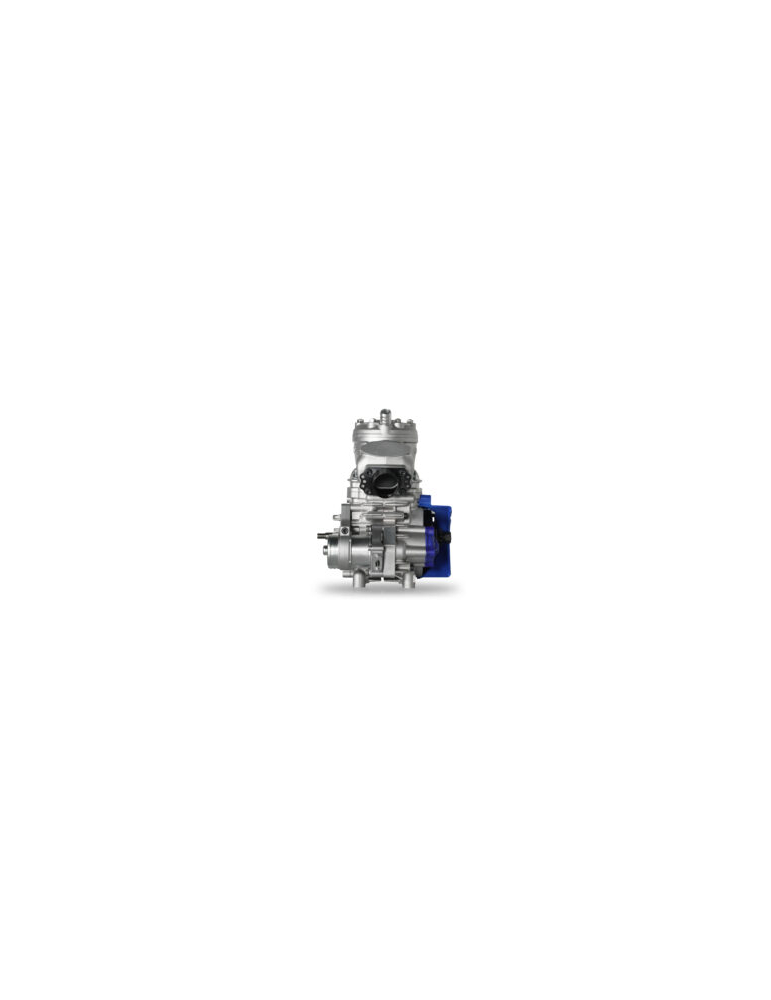

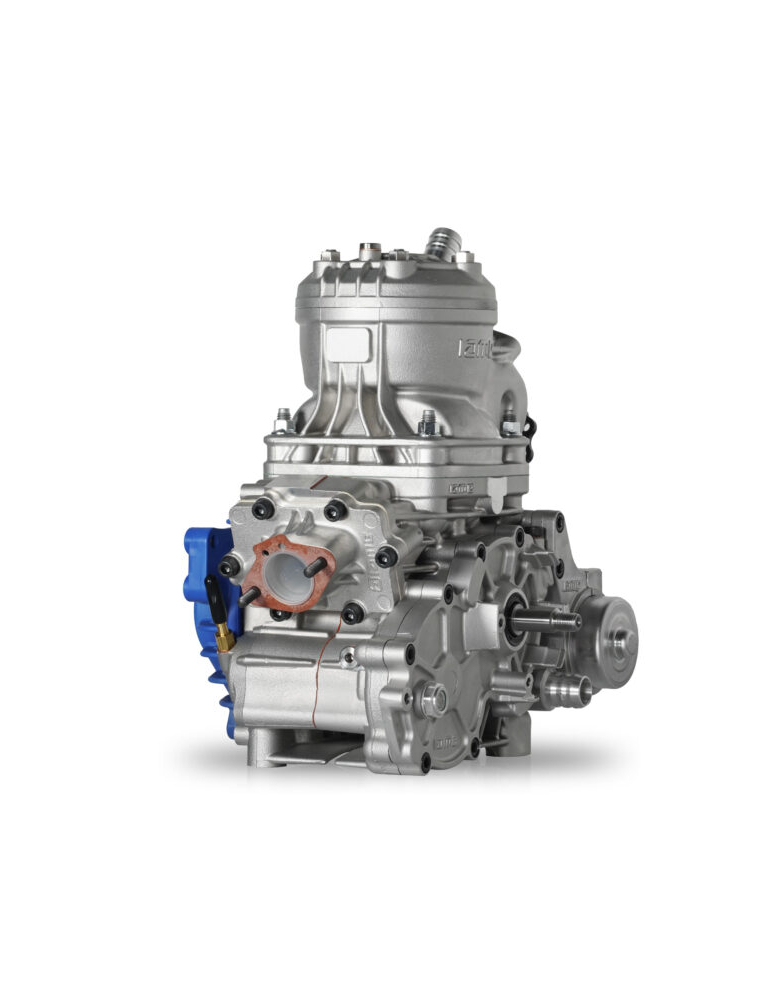

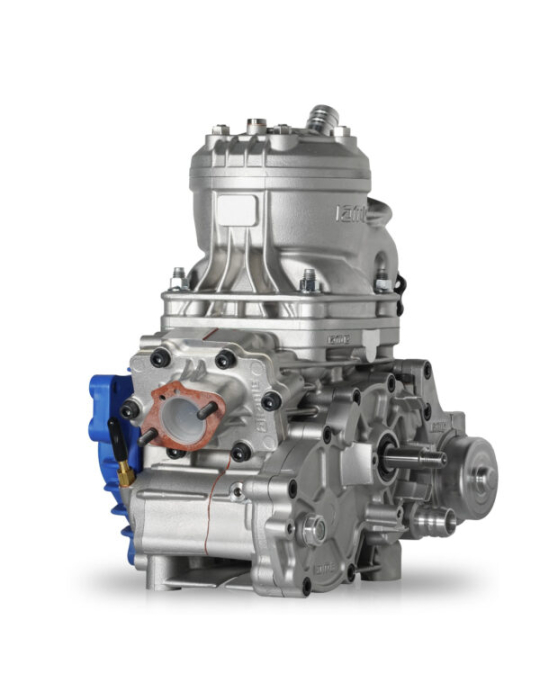

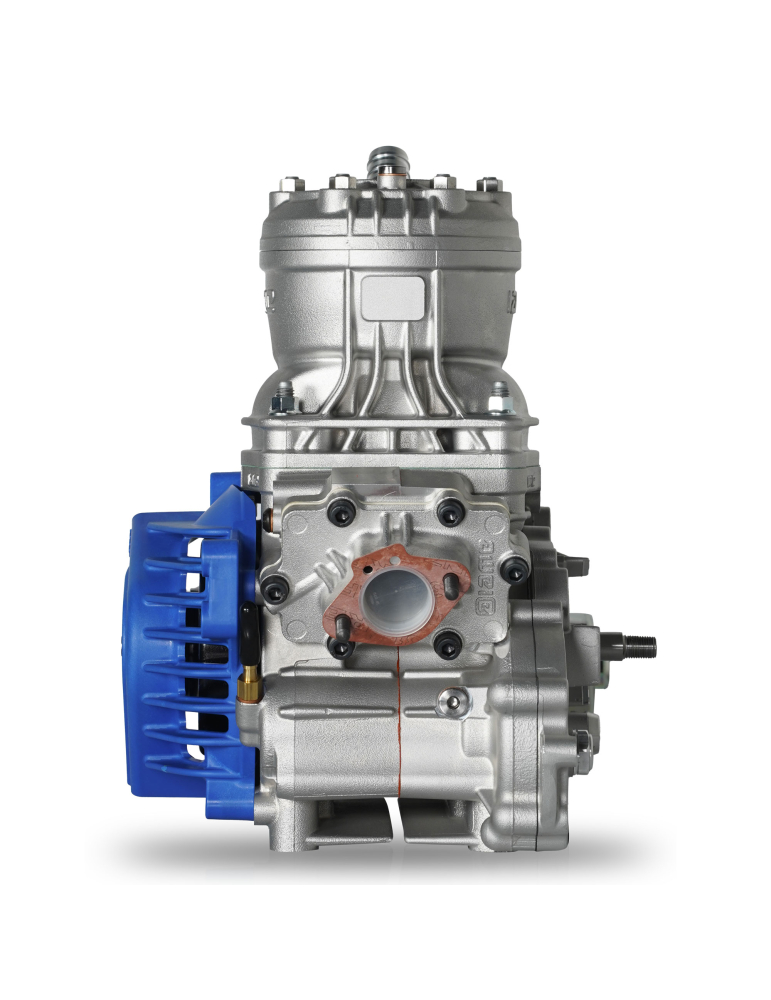

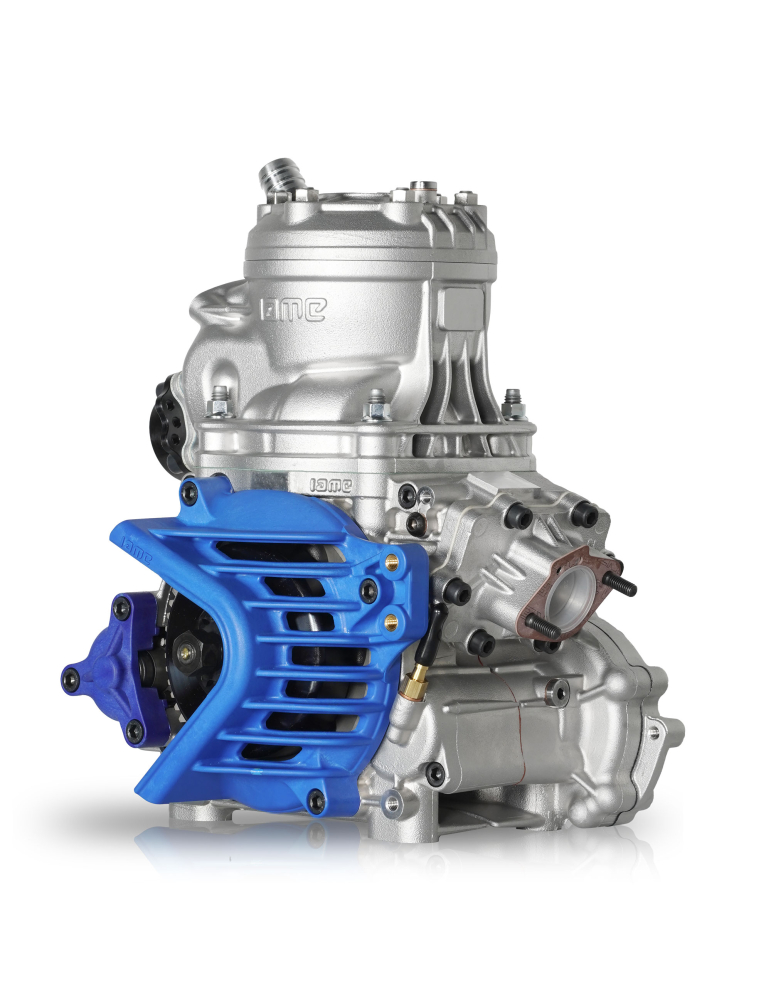

MOTEUR IAME ENGINE S125 COMPLETE

The newly engineered IAME S125, single-cylinder, 125cc two-stroke, water-cooled engine is designed specifically for Karting.
The project is conceived to combine the ease of use of electric started engines with the philosophy and technical solutions shared with high-end racing engines.
The performance level meets nowadays Drivers requirements and the power curve is designed to provide strength yet from the lower revs.
All such is achieved with finest engineering and without the need of an exhaust valve, to preserve ease of use and low maintenance.


Technical information

model: S125 125cc
description: Single cylinder – 2 stroke
class: 125cc Stock Class
bore: Ø 53,89mm
max-bore: Ø 54,08mm
stroke: 54,40mm
displacement: 124,08cc
ports: 5
inlet-system: Reed Valve
lubrication: Oil mixture
ignition-system: Digital
transmission: Centrifugal Dry Clutch
cooling-system: Water
balancer-shaft: Present
starter: Electric
carb-model: Tillotson HW-50A
max-power: 37 BHp @11.500 Rpm
max-torque: 23,5 Nm @ 10.750 Rpm
max-rpm-limit: 16.000 RPM

Category: 125cc SKU: CS1N00150
